What is a seismic earthquake sensor?

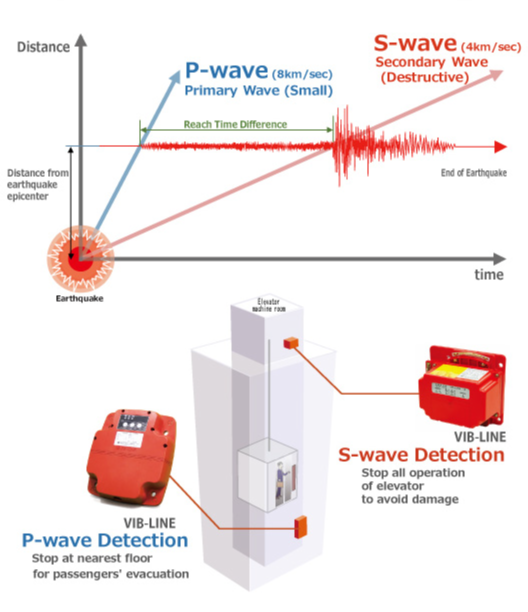

The seismic earthquake sensors detect P-wave and/or S-wave. P-wave is an initial tremor (small pitch) of the earthquake that comes before S-wave, a major tremor (main shock).
Detected signals are sent to control units for immediate initiation of emergency procedure, including safe shutdown of the facilities.
Please refer to [P-wave and S-wave].
How the seismic earthquake sensors work?
For example, if a big earthquake occurs, the elevator shaft will probably be damaged and the elevator may stop or the door may deform and not be able to open, resulting in people being trapped inside.
In another case, if the piping system of a plant facility is damaged by a big earthquake, a dreadful gas explosion may occur.
Based on many experiences, Japan, as the worst earthquake-damaged country, is taking measures to protect people's lives from earthquakes.
We have various types of seismic earthquake sensors, and they are indispensable for the earthquake disaster prevention.

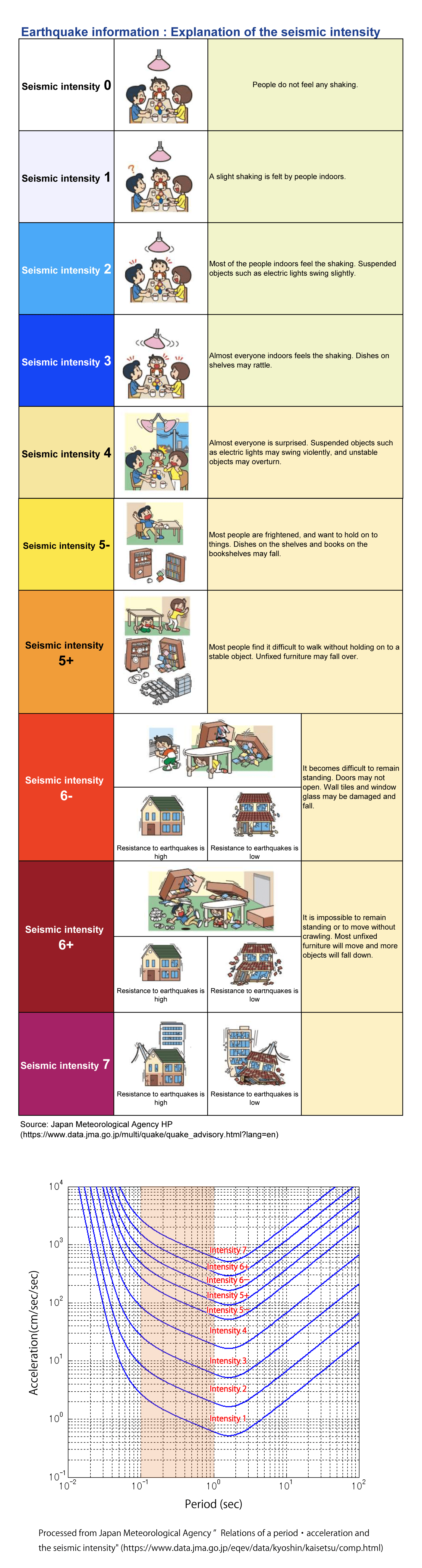

Please refer to [Japanese seismic intensity scale and acceleration table].
Product Lineup

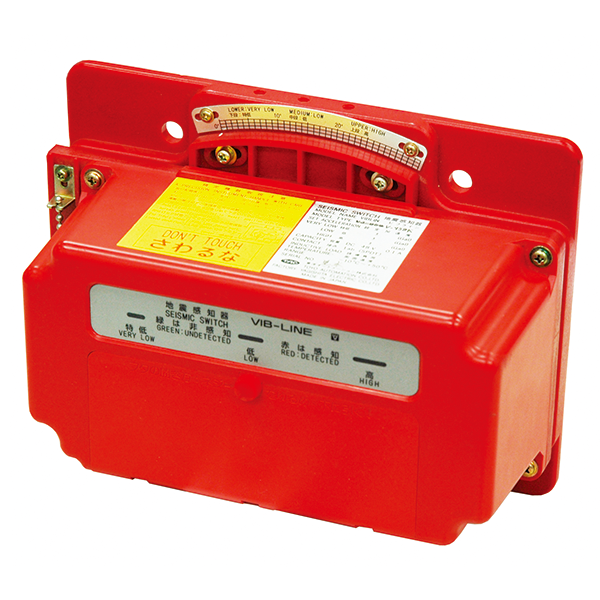

i. Mechanical seismic earthquake sensors are for detecting S-wave only.
The mechanical type senses acceleration by a weight magnet with stable performance.
It has high accuracy and a wide range of characteristics on the low-frequency side.
Even if a power outage occurs after an earthquake, the mechanical seismic earthquake sensor operates without electricity*, so it is effective in detecting aftershocks.
*Power is required for remote reset.
ii. Electronic seismic earthquake sensors are classified into two types according to the seismic waves detected; P-wave only and both P-wave and S-wave.
The electronic type senses acceleration by electrostatic capacitance.
The P-wave seismic earthquake sensor is recommended for preparing the elevator to stop by detecting the initial tremor (small pitch) of an earthquake that comes before a major tremor (main shock) detected by S-wave sensors.
iii. Long-period Seismic
We can offer about this product individually.
Please refer to[CONTACT US].
Mechanical and Electronic
- Mechanical
(for detecting S-wave only) - Electronic
- Elevators
- ≪Apply to Building Standard Law in Japan≫
-
(1)Normal Type

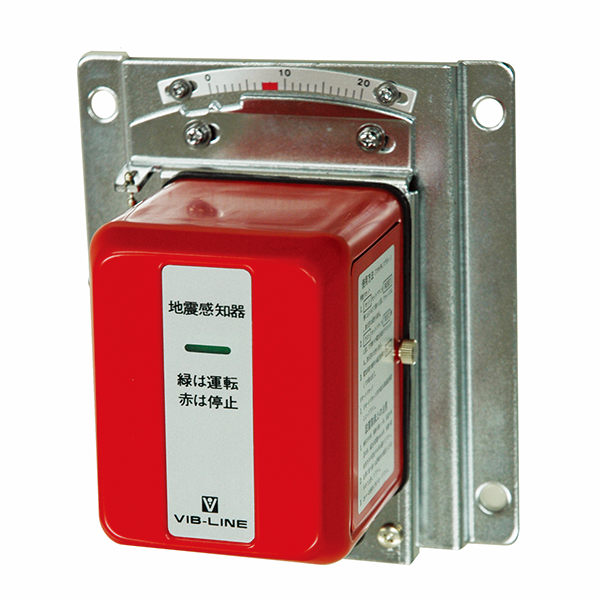

V-757N1
V-858N1
V-958 -
(1)P-wave only
V-107P(2)Both P-wave and S-wave
V-107
- Boiler equipment
- ≪Conform to Ordinance of Fire Prevention of Tokyo≫

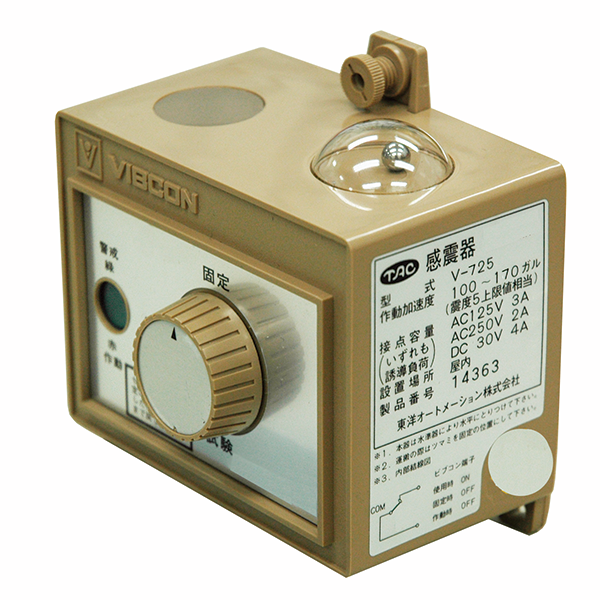

- V-725
- ―
- LP-Gas equipment
- ≪Conform to Ordinance of Ministry of Economy, Trade and Industry in Japan≫
- V-925
- ―
- General industrial equipment and Business equipment
- V-756
- ―
TABLE1: Mechanical Type
- Main usage
- Plant, Water tank, etc.
- Elevator
- Boiler
- Gas equipment
- External dimensions (W)x(H)x(D) mm
- 147 x 163 x 103.5
- 190 x 168 x 100.6
- 230 x 170 x 100.6
- 104 x 107 x 75
- Detection
- Direction
- Horizontal
- Setting value nos (choice from acceleration range)
- 1 (specified at the order)
- 2 (specified at the order)
- 3 (specified at the order)
- 1(Non specifed)
- Acceleration range
- 30-300 Gal
- 30-300 Gal
- 30-300 Gal
- 30-300 Gal
- 100-170 Gal
- 150-250 Gal
- Contact output
- 1C
- 1Cx2
- 1Cx3
- 1b
- 1a
- How to reset
- On-site operation
- Low: Remote possible
High: On-site operation - Low/Mid: Remote possible
High: On-site operation - On-site operation
- How to Test
- On-site check acceleration by tilting the body & on-site test possible
- On-site test possible
- Electric Supply for remote reset
- ―
- ―
- AC100 / DC24 / DC48
- AC100 / DC24 / DC48
- ―
- ―
- Option
- Remote reset function
- High precision type for long-period earthquake
- ―
- ―
TABLE2: Electronic Type
- Main Usage
- Elevator
- External dimensions (W)x(H)x(D)mm
- 180 x 199 x 40
- Weight
- 0.8kg
- Detection
- Direction
- Vertical (P-wave)
- Triaxial(S-wave)
- Vertical(P-wave)
- Setting value nos(choice from acceleration range)
- 1(on-site set possible )
- 2 (specified at the order )
- 1(on-site set possible )
- Acceleration range
- 2.5/5/10 Gal
- 30-300 Gal
- 2.5/5/10 Gal
- Contact output
- 1a
- 1a x2
- 1a
- Electric Supply
- AC100 / DC24 / DC48
- How to reset
- Automatic (after specified seconds)
- Low: Remote possible
High: On-site operation - Automatic (after specified seconds)
- Option
- Backup battery, Waterproof, Data recording, B-contact

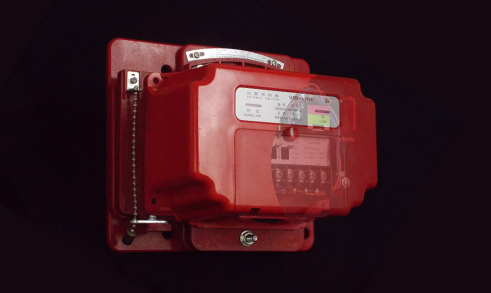

VIB-LINE V-756-F
- Name
- VIB-LINE
- Mode
- V-756-F
- Main usage
- Boiler
- External dimensions (W)x(H)x(D)mm
- 147 x 163 x 103.5
- Weight
- 1.6 kg
- Detection
- Direction
- Horizontal
- Setting value nos(choice from acceleration range)
- 1(specified at the order)
- Acceleration range
- 30-300 Gal
- Contact output
- 1C
- How to reset
- On-site operation
- How to test
- On-site check acceleration by tilting the body & on-site test possible
- Electric Supply for remote reset
- ―
- Option
- Remote reset function

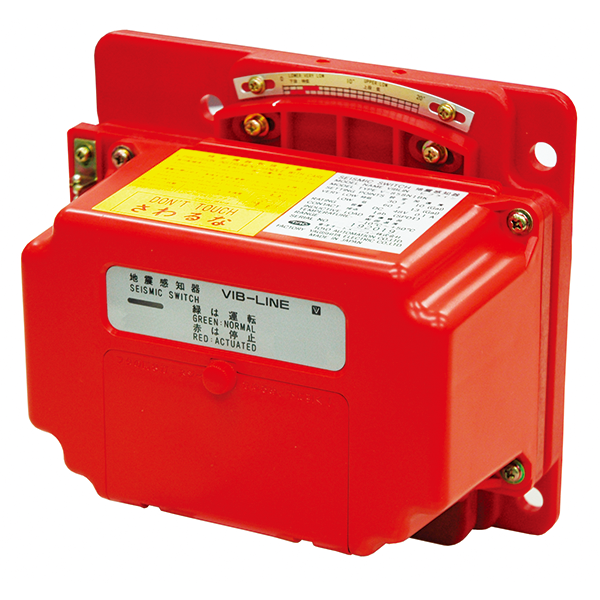

VIB-LINE V-757N1-F
- Name
- VIB-LINE
- Mode
- V-757N1-F
- Main usage
- Elevator
- External dimensions (W)x(H)x(D)mm
- 190 x 168 x 100.6
- Weight
- 1.0 kg
- Detection
- Direction
- Horizontal
- Setting value nos(choice from acceleration range)
- 1(specified at the order)
- Acceleration range
- 30-300 Gal
- Contact output
- 1C
- How to reset
- On-site operation
- How to test
- On-site check acceleration by tilting the body & on-site test possible
- Electric Supply for remote reset
- ―
- Option
- High precision type for long-period earthquake
VIB-LINE V-858N1-F
- Name
- VIB-LINE
- Mode
- V-858N1-F
- Main usage
- Elevator
- External dimensions (W)x(H)x(D)mm
- 190 x 168 x 100.6
- Weight
- 1.2 kg
- Detection
- Direction
- Horizontal
- Setting value nos(choice from acceleration range)
- 2(specified at the order)
- Acceleration range
- 30-300 Gal
- Contact output
- 1C x 2
- How to reset
- Low: Remote possible
High: On-site operation
- How to test
- On-site check acceleration by tilting the body & on-site test possible
- Electric Supply for remote reset
- AC100 / DC24 / DC48
- Option
- High precision type for long-period earthquake
VIB-LINE V-958-F
- Name
- VIB-LINE
- Mode
- V-958-F
- Main usage
- Elevator
- External dimensions (W)x(H)x(D)mm
- 230 x 170 x 100.6
- Weight
- 1.8 kg
- Detection
- Direction
- Horizontal
- Setting value nos(choice from acceleration range)
- 3(specified at the order)
- Acceleration range
- 30-300 Gal
- Contact output
- 1C x 3
- How to reset
- Low/Mid: Remote possible
High: On-site operation
- How to test
- On-site check acceleration by tilting the body & on-site test possible
- Electric Supply for remote reset
- AC100 / DC24 / DC48
- Option
- High precision type for long-period earthquake
VIBCON V-725
- Name
- VIBCON
- Mode
- V-725
- Main usage
- Boiler
- External dimensions (W)x(H)x(D)mm
- 104 x 107 x 75
- Weight
- 0.35 kg
- Detection
- Direction
- Horizontal
- Setting value nos(choice from acceleration range)
- 1(Non specified)
- Acceleration range
- 100-170 Gal
- Contact output
- 1b
- How to reset
- On-site operation
- How to test
- On-site test possible
- Electric Supply for remote reset
- ―
- Option
- ―
- Others
- ≪Conform to Ordinance of Fire Prevention of Tokyo≫

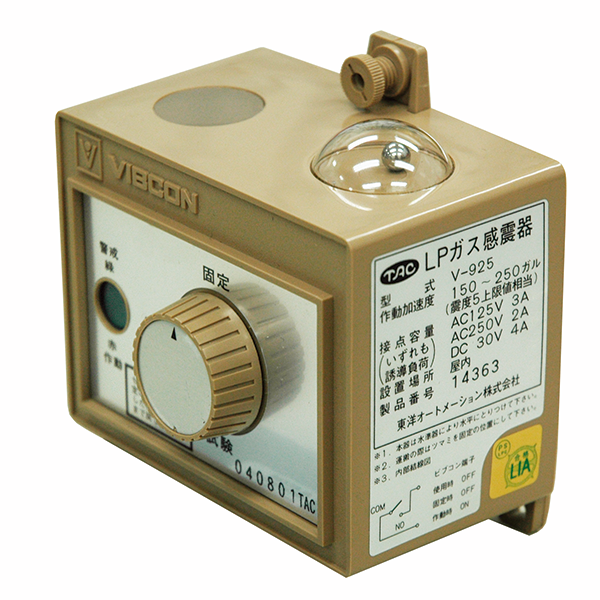

VIBCON V-925
- Name
- VIBCON
- Mode
- V-925
- Main usage
- Gas equipment
- External dimensions (W)x(H)x(D)mm
- 104 x 107 x 75
- Weight
- 0.35 kg
- Detection
- Direction
- Horizontal
- Setting value nos(choice from acceleration range)
- 1(Non specified)
- Acceleration range
- 150-250 Gal
- Contact output
- 1a
- How to reset
- On-site operation
- How to test
- On-site test possible
- Electric Supply for remote reset
- ―
- Option
- ―
- Others
- ≪Conform to Ordinance of Ministry of Economy, Trade and Industry in Japan≫

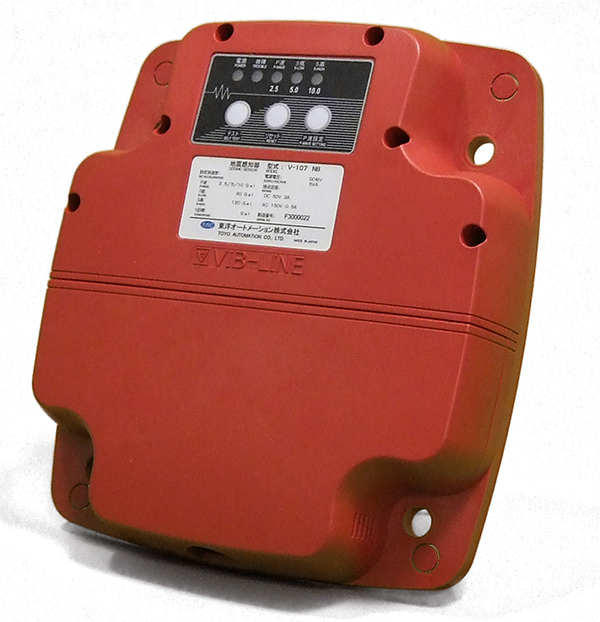

VIB-LINE V-107
- Name
- VIB-LINE
- Mode
- V-107
- Main Usage
- Elevator
- External dimensions (W)x(H)x(D)mm
- 180 x 199 x 40
- Weight
- 0.8kg
- Detection
- Direction
- Vertical(P-wave)
- Triaxial(S-wave)
- Setting value nos(choice from acceleration range)
- 1(on-site set possible)
- 2 (specified at the order)
- Acceleration range
- 2.5/5/10 Gal
- 30-300 Gal
- Contact output
- 1a
- 1ax2
- How to reset
- Automatic(after specified seconds)
- Low: Remote possible
High: On-site operation
- Electric Supply
- AC100 / DC24 / DC48
- Option
- Backup battery, Waterproof, Data recording, B-contact
VIB-LINE V-107P
- Name
- VIB-LINE
- Mode
- V-107P
- Main usage
- Elevator
- External dimensions (W)x(H)x(D)mm
- 180 x 199 x 40
- Weight
- 0.8 kg
- Detection
- Direction
- Vertical(P-wave)
- Setting value nos(choice from acceleration range)
- 1(on-site set possible)
- Acceleration range
- 2.5/5/10 Gal
- Contact output
- 1a
- How to reset
- Automatic(after specified seconds)
- Electric Supply
- AC100 / DC24 / DC48
- Option
- Backup battery, Waterproof, Data recording, B-contact
